DEMAC电缆卷筒-旋转接头-叉车卷盘-电缆卷盘

意大利DEAMC-上海班品智能自动化设备有限公司

DEMAC是一家在工业和起重应用领域制造软管和电缆卷筒的市场领先公司。其创始人多梅尼科·瓦拉诺在20世纪70年代末开始了这个旅程，并于1981年成立了DEMAC。公司通过持续的发展和客户的满意度逐渐壮大，先后迁址到切雷洛和科贝塔。在多梅尼科和他的儿子法比奥、劳拉的努力下，DEMAC在麦真塔建立了一座现代化的设施。公司的成功源自对激情、人员价值和产品质量的高度重视，并不断致力于创新和未来发展。

上海班品智能自动化设备有限公司

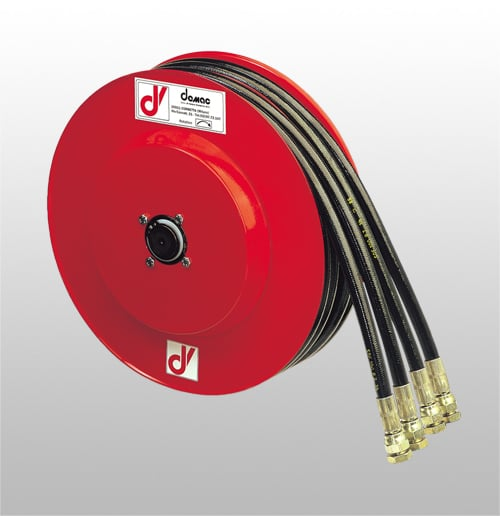

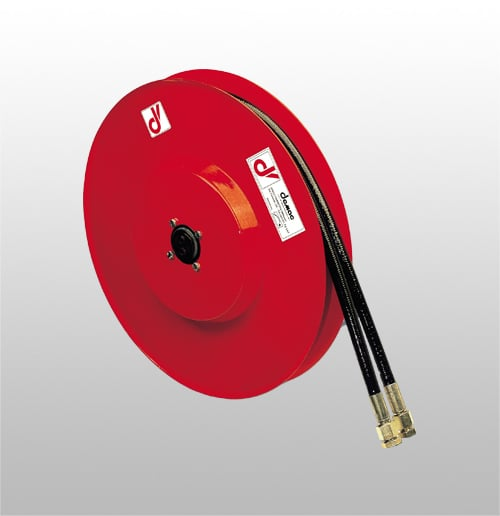

DEMAC产品是软管和电缆卷盘领域的世界领先者，具有非常高的质量目标和可靠性，它们可以安装在广泛的应用领域：任何类型的起重机械、工业搬运机械、液压钻孔机、海上、复杂液压系统等众多应用领域。

TYP	D mm	A mm	B mm	Length of Hoses (SAE 100 R7 - R8) mm	DUPLEX H mm	TRIPLEX H mm	QUADRUPLEX H mm	Weight Kg
AGD 230.05	235	132	63	3/16×3000	4800	3800	x	11
AGD 230.06	235	132	63	1/4×2200	4000	3000	x	11
AGD 230.08	235	132	63	5/16×2000	3800	2800	x	11
AGD 230.10	235	132	63	3/8×2000	3800	2800	x	11
AGD 270.06	270	132	63	1/4×4000	6000	5000	x	12
AGD 270.08	270	132	63	5/16×3200	5200	4200	x	12
AGD 270.10	270	132	63	3/8×2800	4800	3800	x	12
AGD 295.0.06	295	138	69	1/4×4700	7000	6000	5000	13
AGD 295.0.08	295	138	69	5/16×4200	6000	5000	x	13
AGD 295.0.10	295	138	69	3/8×3600	5500	4800	x	13
AGD 320.0.06	320	138	69	1/4×5500	9000	7500	6500	13,5
AGD 320.0.08	320	138	69	5/16×5000	7500	6500	5500	13,5
AGD 320.0.10	320	138	69	3/8×4500	7000	6000	5000	13,5
AGD 340.0.06	340	138	69	1/4×6000	9500	8000	7000	14
AGD 340.0.08	340	138	69	5/16×5300	8000	7000	6000	14
AGD 340.0.10	340	138	69	3/8×4600	7000	6000	5000	14

HYDRAULIC 2 WAYS (3/8") HOSE REELS
Reel Diameter	Hose Type	Hose-Fittings Type	Hose Lenght		Working Pressure	Flowrate
(mm)			Total	Usable	(bar)	(lpm)
(mm)			(m)	(m)	(bar)	(lpm)
AGD/S 270*	TWIN B1-3/8"	M20X1,5	3	2,7	225	40
AGD/S 295*	TWIN B1-3/8"	M20X1,5	3,6	3,3	225	40
AGD/S 320*	TWIN B1-3/8"	M20X1,5	4,5	4,2	225	40
AGD/S 400	TWIN B1-3/8"	M20X1,5	6	5,7	225	40
AGD/S 470	TWIN B1-3/8"	M20X1,5	8	7,7	225	40
AGD/S 470	TWIN B1-3/8"	M20X1,5	10	9,7	225	40
AGD/S 520	TWIN B1-3/8"	M20X1,5	12	11,7	225	40
AGD/S 570	TWIN B1-3/8"	M20X1,5	14	13	225	40
AGD/S 600	TWIN B1-3/8"	M20X1,5	16	15,5	225	40
AGD/S 650	TWIN B1-3/8"	M20X1,5	17,5	17	225	40
AGD/S 700	TWIN B1-3/8"	M20X1,5	20	19,5	225	40
AGD/S 700	TWIN B1-3/8"	M20X1,5	21	20,5	225	40
AGD/S 800	TWIN B1-3/8"	M20X1,5	26	25	225	40
AGD/S 900	TWIN B1-3/8"	M20X1,5	34	33	225	40
AGD/S 1000	TWIN B1-3/8"	M20X1,5	36	35	225	40

HYDRAULIC 2 WAYS (1/2") HOSE REELS
Reel Diameter	Hose Type	Hose-Fittings Type	Hose Lenght		Working Pressure	Flowrate
(mm)			Total	Usable	(bar)	(lpm)
(mm)			(m)	(m)	(bar)	(lpm)
AGD/S 370	TWIN B2 1/2"	M24X1,5	3,5	3	310	60
AGD/S 400	TWIN B2 1/2"	M24X1,5	4,5	4	310	60
AGD/S 470	TWIN B2 1/2"	M24X1,5	6	5,5	310	60
AGD/S 470	TWIN B2 1/2"	M24X1,5	8	7,5	310	60
AGD/S 570	TWIN B2 1/2"	M24X1,5	10	9,5	310	60
AGD/S 600	TWIN B2 1/2"	M24X1,5	12	11,5	310	60
AGD/S 650	TWIN B2 1/2"	M24X1,5	14	13,5	310	60
AGD/S 700	TWIN B2 1/2"	M24X1,5	16	15,5	310	60
AGD/S 700	TWIN B2 1/2"	M24X1,5	18	17,5	310	60
AGD/S 800	TWIN B2 1/2"	M24X1,5	18	17,5	310	60
AGD/S 800	TWIN B2 1/2"	M24X1,5	21	20	310	60
AGD/S 900	TWIN B2 1/2"	M24X1,5	28	27	310	60
AGD/S 1000	TWIN B2 1/2"	M24X1,5	35	34	310	60

AG.19 SERIES 2 WAYS HOSE REELS (80 lpm)
Reel Diameter	Hose Type	Hose-Fittings Type	Hose Lenght		Working Pressure	Flowrate
(mm)			Total	Usable	(bar)	(lpm)
(mm)			(m)	(m)	(bar)	(lpm)
AGD/S 700	TWIN B3 5/8"	M30X2	13	12,5	250	80
AGD/S 800	TWIN B3 5/8"	M30X2	17,5	16,5	250	80
AGD/S 800	TWIN B3 5/8"	M30X2	19	18	250	80
AGD/S 900	TWIN B3 5/8"	M30X2	23	22	250	80

HYDRAULIC 4 WAYS (3/8') HOSE REELS
Reel Diameter	Hose Type	Hortum-Rakor Tipi	Hose Lenght		Working Pressure	Flowrate
(mm)			Total	Usable	(bar)	(lpm)
(mm)			(m)	(m)	(bar)	(lpm)
A4D/S 370	TWIN-B1-3/8"	M20X1,5	4,5	4,2	225	40
A4D/S 400	TWIN-B1-3/8"	M20X1,5	5,6	5,3	225	40
A4D/S 420	TWIN-B1-3/8"	M20X1,5	6,7	6,2	225	40
A4D/S 470	TWIN-B1-3/8"	M20X1,5	9,5	9	225	40
A4D/S 520	TWIN-B1-3/8"	M20X1,5	11,2	10,7	225	40
A4D/S 570	TWIN-B1-3/8"	M20X1,5	13,5	13	225	40
A4D/S 600	TWIN-B1-3/8"	M20X1,5	16	15,5	225	40
A4D/S 700	TWIN-B1-3/8"	M20X1,5	20	19,5	225	40
A4D/S 420	TWIN-B2-1/2"	M24X1,5	4,7	4,2	310	60
A4D/S 470	TWIN-B2-1/2"	M24X1,5	7,5	7	310	60
A4D/S 520	TWIN-B2-1/2"	M24X1,5	9	8,5	310	60
A4D/S 570	TWIN-B2-1/2"	M24X1,5	10,7	10,2	310	60
A4D/S 600	TWIN-B2-1/2"	M24X1,5	12,5	12	310	60
A4D/S 650	TWIN-B2-1/2"	M24X1,5	14,5	14	310	60
A4D/S 700	TWIN-B2-1/2"	M24X1,5	16	15,5	310	60
A4D/S 800	TWIN-B2-1/2"	M24X1,5	21	20	310	60

ONE WAY HOSE AND CABLE REEL
Core	Diameter	Cable Section	Hose Type	Working Pressure	Hose Lenght	Max Voltage/Current
Core	(mm)	Cable Section	Hose Type	(bar)	(m)	(V / A)
A1D3401445M	340	2*1,5 mm ²	1/4" - B1	275	4,5	75 V / 5 AM
A1D4701410M	470	2*1,5 mm ²	1/4" - B1	275	10	75 V / 5 AM
A1D5201414M	520	2*1,5 mm ²	1/4" - B1	275	14,5	75 V / 5 AM
A1D5701417M	570	2*1,5 mm ²	1/4" - B1	275	17,5	75 V / 5 AM

TWO WAYS HOSE AND CABLE REELS
Code	Diameter	Hose Type	Working Pressure	Hose Lenght
	Diameter		Working Pressure	Total	Usable
	(mm)		(bar)	(m)	(m)
AGD/S 700	700	5/16" - R7	212	20,0	19,5
AGD/S 700	700	5/16" - R7	212	23,0	22,5
AGD/S 800	800	5/16" - R7	212	24,5	24,0
AGD/S 800	800	5/16" - R7	212	29,5	29,0

FOUR WAYS HOSE AND CABLE REELS
Code	Diameter	Hose Type	Working Pressure	Hose Lenght
	Diameter		Working Pressure	Total	Usable
	(mm)		(bar)	(m)	(m)
AGD/S 470	470	3/8" - B1	212	10,1	9,6
AGD/S 650	650	3/8" - B1	212	19,5	19,0
AGD/S 650	650	3/8" - B1	212	20,0	19,5
AGD/S 800	800	3/8" - B1	212	24,5	24,0
AGD/S 800	800	3/8" - B1	212	29,5	29,0

CR SERIES CABLE REELS
CODE	Diameter	Cable	Lenght	Max Voltage	Max Current	Protection
CODE	mm	Section	m	(V)	(A)	Class
CR1200202533	120	2*0,25 mm ²	3,3	75V	-	IP 65
CR1200302533	120	3*0,25 mm ²	3,3	75V	-	IP 65
CR370021515*	370	2*1,5 mm ²	15	75V	6A	IP 65
CR420021525*	420	2*1,5 mm ²	25	75V	6A	IP 65
CR470021530*	478	2*1,5 mm ²	30	75V	6A	IP 65
CR370031515	370	3*1,5 mm ²	15	75V	6A	IP 65
CR420031525	420	3*1,5 mm ²	25	75V	6A	IP 65
CR470031530	478	3*1,5 mm ²	30	75V	6A	IP 65
CR370041515	340	4,1,5 mm ²	15	75V	6A	IP 65
CR420041520	420	4,1,5 mm ²	20	75V	6A	IP 65
CR470041525	478	4,1,5 mm ²	25	75V	6A	IP 65
CR470041530	478	4,1,5 mm ²	30	75V	6A	IP 65
CR600041535	620	4,1,5 mm ²	35	75V	6A	IP 65
CR370071515	370	7*1,5 mm ²	15	75V	6A	IP 65
CR420071520	420	7*1,5 mm ²	20	75V	6A	IP 65
CR420071525	420	7*1,5 mm ²	25	75V	6A	IP 65
CR700071535	720	7*1,5 mm ²	35	75V	6A	IP 65
