DEMAC A4 4-Way Hydraulic Twin Hose Reel

3/8" Diameter, Spring-Loaded, 330 Bar Pressure，Durable, Epoxy-Painted Carbon Steel Hydraulic Hose Reel with Twin 4-Way Hose Configuration

The A4 4-Way Hydraulic Twin Hose Reel is engineered for demanding industrial and hydraulic applications where continuous movement and retraction are required. This spring-loaded hose reel is made with high-quality carbon steel and painted with durable epoxy coatings, designed to house twin 4-way hydraulic hoses. Capable of withstanding up to 330 bar of pressure and temperatures ranging from -40°C to +100°C, this reel is ideal for various hydraulic systems, drills, and industrial machinery. Equipped with 3/8" diameter hoses featuring two steel reinforcement braids, it supports a maximum flow rate of 30 liters per minute and a rewinding speed of up to 30 meters per minute.

Contact Us

Product Details:

Model: A4 4-Way Hydraulic Twin Hose Reel
Hose Diameter:
- Inner: 10 mm
- Outer: 17 mm
Pressure: Standard 300 bar (optional 400 bar)
Temperature Range:
- Standard: -20°C to +80°C
- Optional: -40°C to +80°C

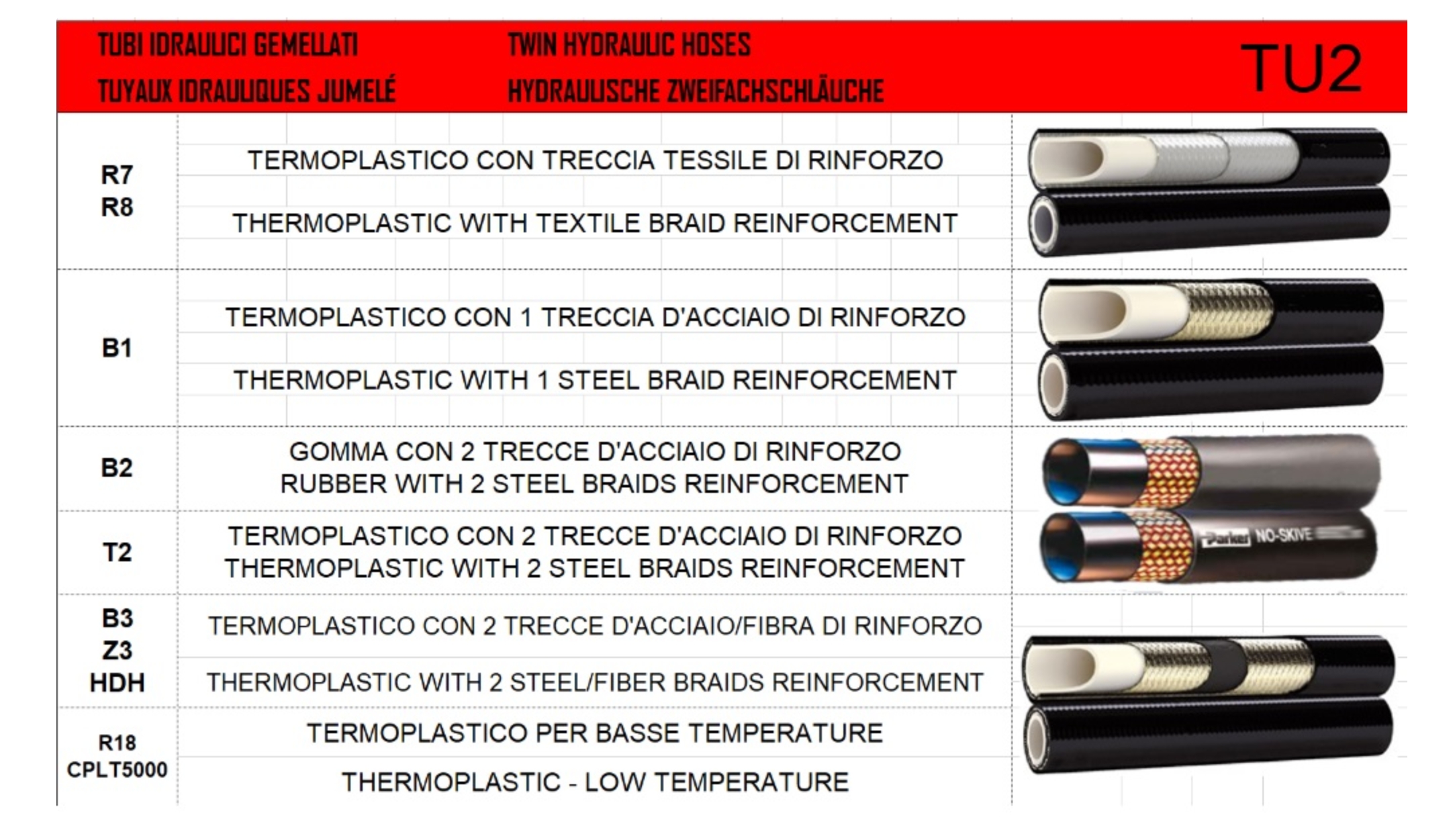

Hose Construction: Twin 4-way hydraulic hoses, thermoplastic with two steel braids for reinforcement
Maximum Flow Rate: 30 liters/minute
Maximum Hose Rewinding Speed: 30 meters/minute
Hose Length: Total length 11.2 meters, usable length 10.7 meters
Reel Material: Drum made from carbon steel sheet, painted with epoxy powder
Weight: 28 kg without hose
Features: Spring-loaded retraction with crocodile articulated joints for easy handling
Applications: Suitable for hydraulic systems in industrial handling equipment, hydraulic drills, offshore equipment, and complex hydraulic applications
Orientation: Available in both right (A4D400) and left (A4S400) models
