Product Details:

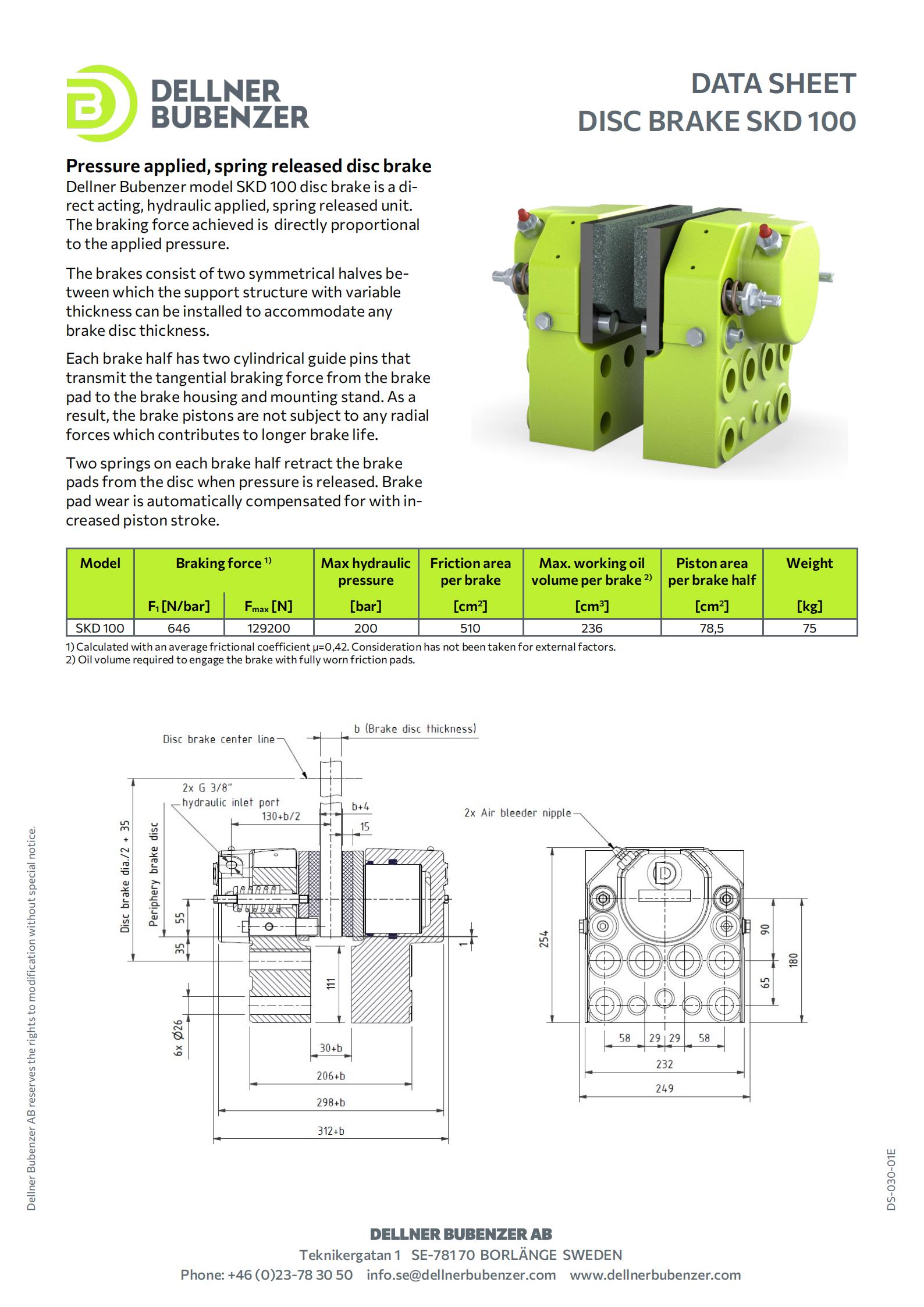

The SKD 100 Active Brakes are robust and reliable disc brakes ideal for industrial applications requiring high braking force. These brakes are designed with hydraulic or air pressure application and spring release, ensuring a controlled and efficient braking process. The braking force generated is directly proportional to the applied pressure, offering precise control for both dynamic and static braking needs.
Key Features:
- High Braking Force: Capable of delivering up to 129,200 N of braking force, ensuring reliable performance in heavy-duty operations.
- Hydraulic or Air Pressure Applied: Braking force is generated through hydraulic or air pressure, with spring release for fast and efficient resetting.
- Automatic Wear Compensation: Brake pad wear is automatically compensated, reducing maintenance needs and ensuring consistent braking performance over time.
- Dual or Single Housing Configuration: Available with dual or single housing options, including primary and secondary cylinder seals, for flexible application across different setups.
- Easy Adjustment: No special tools are required for adjustment, making maintenance and setup straightforward and efficient.
- Durable Design: Built for long life with minimal maintenance, these brakes offer robust performance in tough industrial environments.
Optional Features:
- Electric or Hydraulic Operation: Choose between electric or hydraulic operation based on application requirements.
- Support/Pedestal with Piping: Integrated piping to a single connection point simplifies installation and maintenance.
- Electrical Indicators: ON/OFF and wear indicators provide real-time feedback on brake status and condition, improving operational efficiency.
- Lining Material Options: Available with a variety of lining materials to meet specific application needs.
- Corrosion Protection: Enhanced corrosion protection through surface paint layers, with options for stainless steel components.
- Retractable Spring Configurations: Special spring configurations to overcome hydrostatic difficulties, ensuring reliable braking even in challenging conditions.
Applications: The SKD 100 Active Brakes are suitable for a wide range of industrial applications, including:
- Heavy-Duty Industrial Equipment: Ideal for equipment requiring high braking forces, such as cranes, hoists, and winches.
- Marine and Offshore Installations: Designed to withstand harsh environments, these brakes are perfect for use in offshore platforms and marine operations.
- Steel Mills and Mining: With high wear resistance and robust design, these brakes are well-suited for demanding environments like steel mills and mining operations.
With a focus on high performance, ease of use, and long-term durability, the SKD 100 Active Brakes provide an exceptional solution for industries requiring precise and reliable braking systems.
