Overview of Power Grip Clutch Series
The Power Grip Clutch series is designed to assist in-line mounting for heavy-duty power transmission. When used in conjunction with either a quick change or standard driving adapter, the Power Grip Clutch is best suited as a coupling clutch for shaft-to-shaft applications. This innovative design incorporates a wave spring, which replaces traditional coil springs, requiring only one wave spring per plate versus several coil springs. The wave spring allows for simple assembly of the clutch on the shaft without the need for special tools used to retain obsolete coil springs.
The patented extended tooth hub for Power Grip Clutches greatly aids in reassembling the clutch while mounted on a shaft. The extended teeth ensure that all center and floating plates remain engaged on the hub teeth with the release springs in a relaxed state, ensuring efficient and reliable operation.
Actuation Method
The Power Grip Clutch series offers both hydraulic and pneumatic actuation methods, catering to various operational needs. The pneumatic clutch design features a large diaphragm that compensates for wear during the friction material's lifespan, eliminating the need for frequent adjustments.
Torque and Speed
This series covers a wide torque range from 630 Nm to 1,301,800 Nm, catering to various applications. The maximum speed capability is up to 360 rpm, suitable for high-speed operations.
Standard Sizes

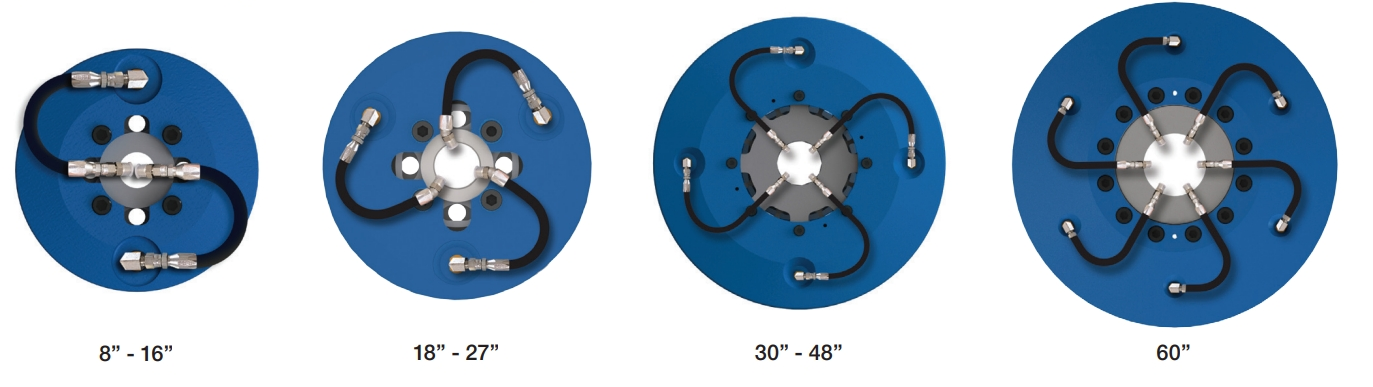

The Power Grip Clutch series offers multiple standard sizes ranging from 8" to 60" in diameter. The PO Clutch variants range from 14" to 42" in diameter, ensuring compatibility with different equipment.
The Power Grip Clutch series, with its innovative design, superior performance, and wide application range, is the ideal choice for heavy-duty power transmission needs. Whether you need to replace an existing brand of clutches or find more efficient solutions, we offer high-quality products to meet your demands.
Product Parameters
| Attribute | Specification |
| Model Series | Power Grip Clutch |
| Actuation Method | Hydraulic, Pneumatic |
| Torque Rating | 630 Nm - 1,301,800 Nm |
| Max Speed | 360 rpm |
| Standard Sizes | 8" - 60" |
| Construction Types | Single, Double, Triple Plate |
| Hub Design | Patented Extended Tooth Hub |
| Spring Type | Wave Spring |
| Operating Temperature | -40°C to +120°C |
| Material | High-Strength Steel, Copper Alloy |
| Friction Material | Proprietary High-Performance Friction Material |
| Maintenance | Minimal, No Adjustment Needed for PO Clutch |
| Certifications | DNV, ABS |
| Applications | Mining Equipment, Construction Machinery, Marine Winches, Drilling Rigs, Industrial Cranes, Steel Mill Equipment, Chemical Plant Equipment, Paper Mills, Textile Machinery |
| Optional Features | Quick Change Driving Adapter, Split Airtubes, Split Friction Discs |
| Compatible Brands | Eaton Airflex, WPT Power, Oil States, Twin Disc, Wichita Clutch |
Product Advantages
The Power Grip PO Clutch is a pneumatic clutch suitable for inline or shaft-to-shaft applications. This design utilizes a large diaphragm that compensates for wear during the life of the friction material, requiring no adjustment. The PO Clutch is available in 1, 2, or 3 plate constructions with diameters ranging from 14" to 42".

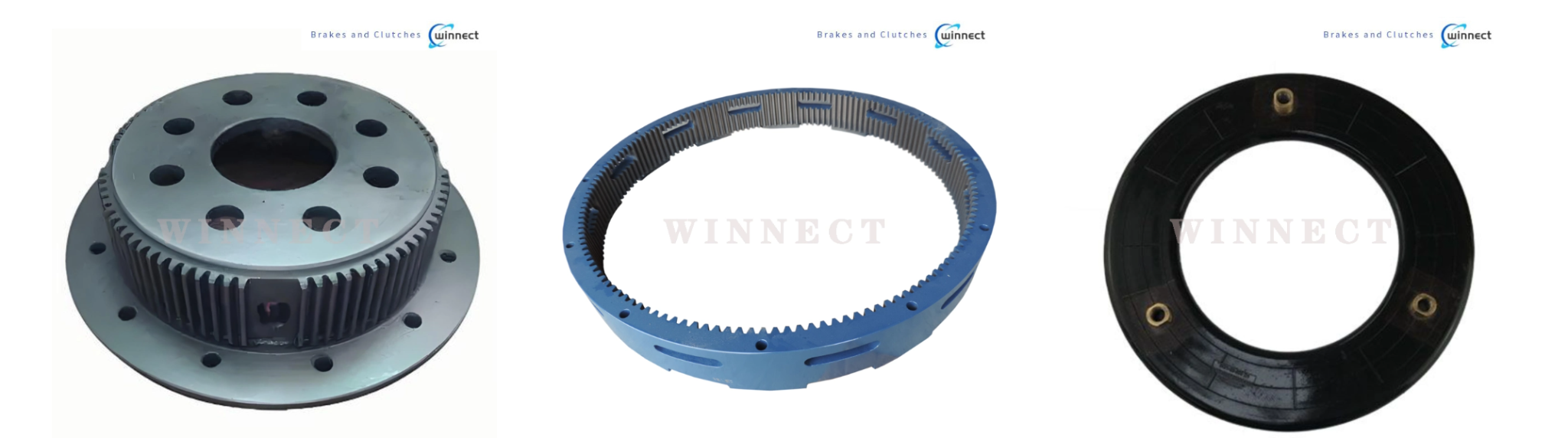

- Extended Hub Teeth: Patented design improves serviceability.
- Wave Springs: Standard release springs use wave springs for simplified assembly.
- Multiple Driving Adapters: Optional standard or quick change driving adapters available.
- Split Airtubes and Friction Discs: Optional for easier replacement and minimal downtime.
- Versatile Actuation: Available with pneumatic or hydraulic actuation.
Product Application
The Power Grip Clutch series is widely used in various heavy machinery and equipment across multiple industries, including:
- Mining Equipment
- Construction Machinery
- Marine Winches
- Drilling Rigs
- Industrial Cranes
- Steel Mill Equipment
- Chemical Plant Equipment
- Paper Mills
- Textile Machinery
