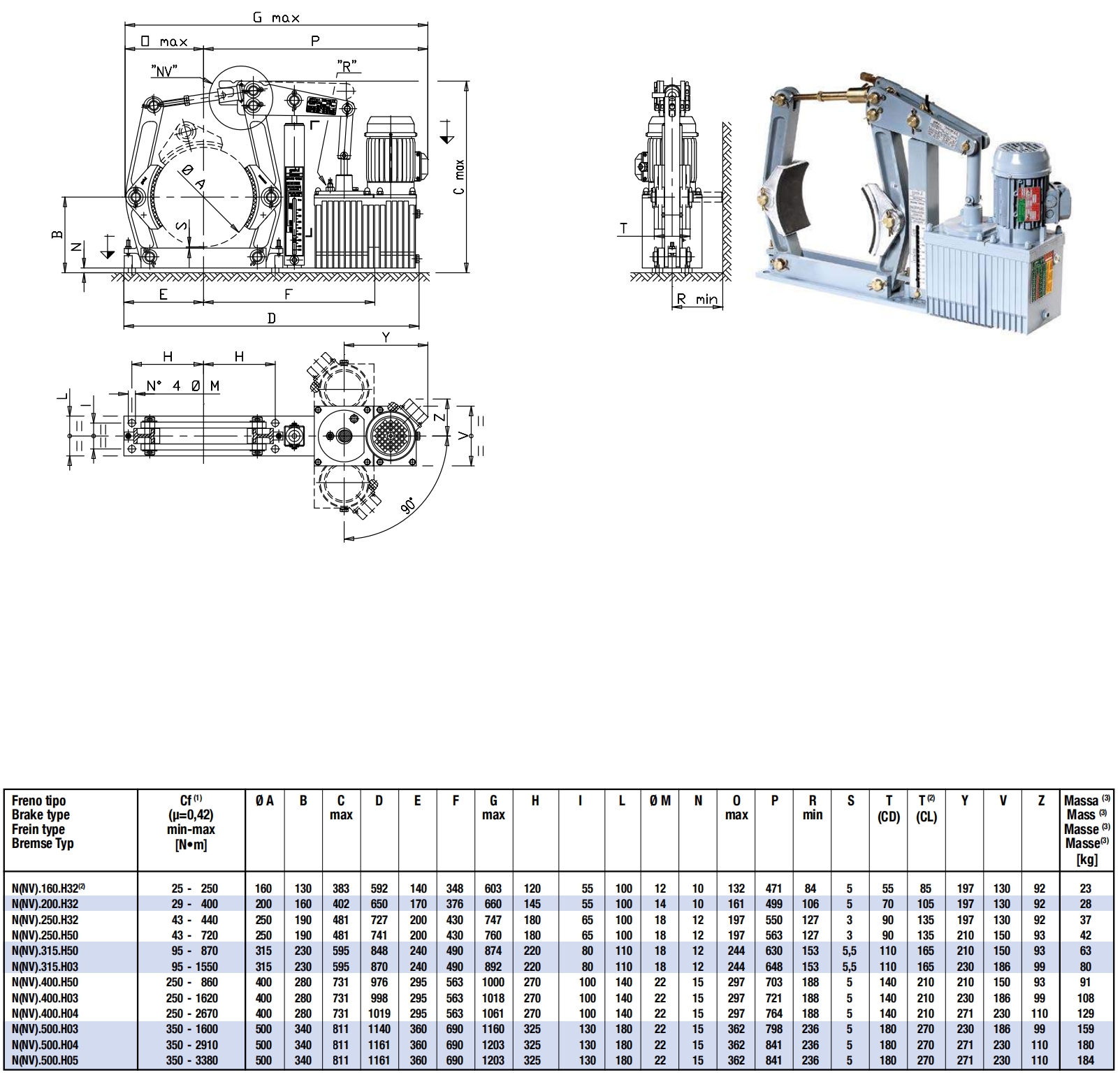

GALVI DIN Failsafe Shoe Brakes N(NV)...H…

Failsafe Shoe Brakes as per DIN 15435 with GALVI “H” Electrohydraulic Thrusters for the Italian Market

The GALVI DIN Failsafe Shoe Brakes N(NV)...H series are designed for the Italian market and meet the DIN 15435 standard for industrial applications. These brakes are equipped with GALVI “H” a.c. electrohydraulic Thrusters and offer an external adjustable main spring set. They provide high reliability and flexibility, with a range of optional features such as explosion-proof ATEX standards, self-adjusting mechanisms, and extra-wide brake shoes. Suitable for demanding industrial environments, the brakes ensure safe and efficient operation.

Contact Us

Product Description:
The GALVI DIN Failsafe Shoe Brakes N(NV)...H series are designed to comply with the DIN 15435 standard and are equipped with GALVI “H” a.c. electrohydraulic Thrusters (IP.55, Class F, tropicalized) and an external adjustable main spring set. These brakes are exclusively manufactured for the Italian market.

Standard Features:

GALVI “H” a.c. electrohydraulic Thruster with IP55 rating, Class F insulation, and tropicalized for enhanced durability (H).
Brake shoes made of aluminum per DIN 15435 standards, fitted with steel bushings (CD).
Asbestos-free linings with a theoretical friction coefficient of μ = 0.42 (42).
Galvanized pins and self-lubricating bushes on main pins for corrosion resistance and low maintenance (AU).
Galvanized pins, tie rods, and smaller components (ZN).
Finished with epoxy antisalt paint in grey (RAL 7001) for long-lasting protection.
Cast iron levers and a robust steel base for reliable operation.

Available Optional Items:

Self-adjusting device (NV).
Extra-wide brake shoes (1.5 times wider than the standard DIN brake shoes) (CL).
Stainless steel pins (SS).
Lubricators on main pins (GR).
Explosion-proof ATEX standard motor (II 2GD EEX D IIB T4 IP65 T135 °C) (EX).
Mechanical microswitch for open position, available on the left (L) or right (R) side (FIA-L/R).
Mechanical microswitch for lining wear, available on the left (L) or right (R) side (FIC-L/R).
Explosion-proof mechanical ATEX standard microswitch for open position (II 2GD EEX D IIC T6 IP.66/67 T85 °C), available on the left (L) or right (R) side (FIA/EX-L/R).
Explosion-proof mechanical ATEX standard microswitch for lining wear (II 2GD EEX D IIC T6 IP.66/67 T85 °C), available on the left (L) or right (R) side (FIC/EX-L/R).
Manual opening and locking system on the opposite side to the FIA optional items (HAN-L/R).
Lowering valve for the “H” Thruster (R).
