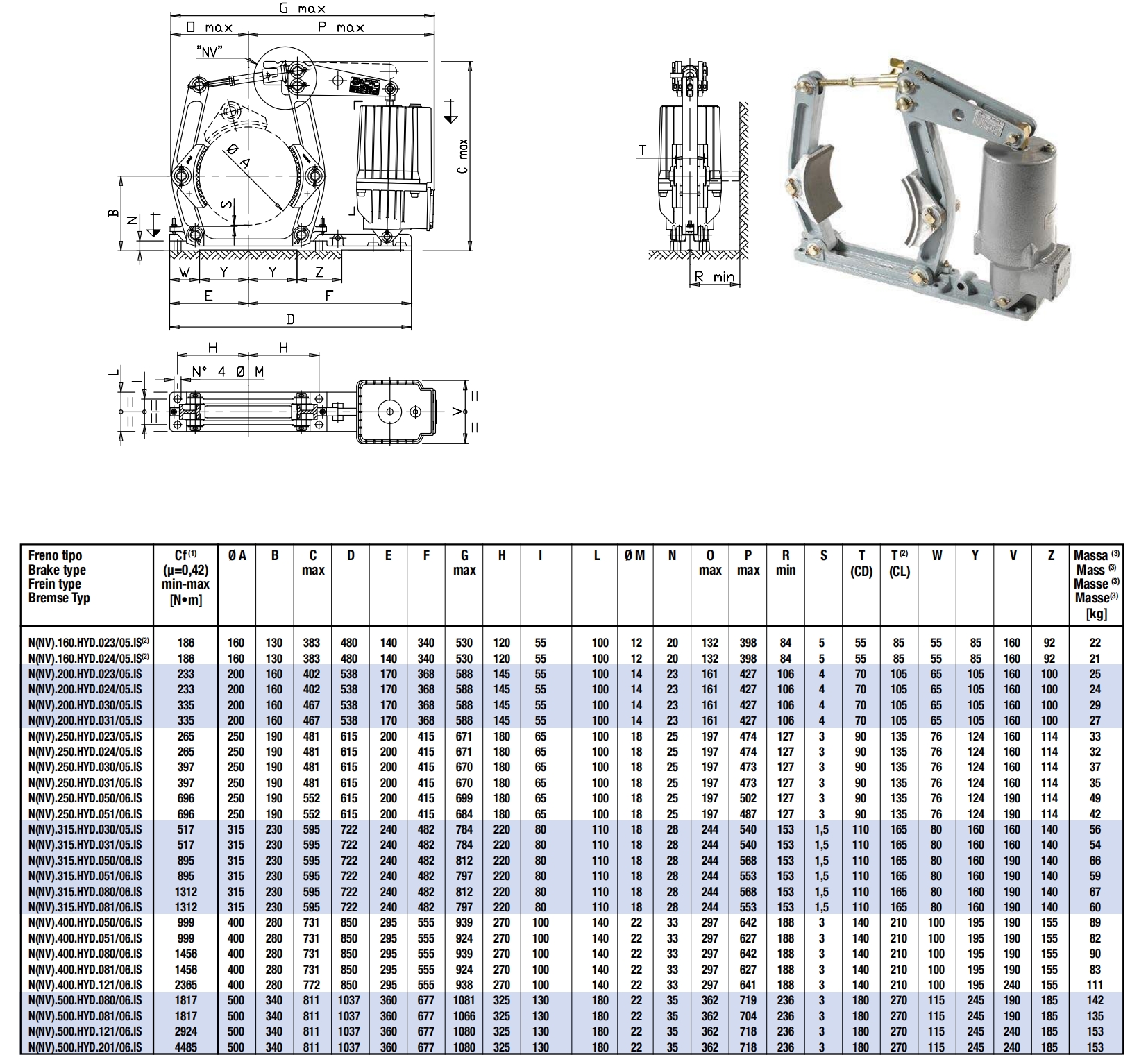

GALVI DIN Failsafe Shoe Brakes N(NV)...HYD...IS

Product Description:
The GALVI DIN Failsafe Shoe Brakes N(NV)...HYD...IS series are designed to meet the DIN 15435 standard. These brakes are equipped with HYDRO GALVI a.c. electrohydraulic Thrusters (IP.65, Class F) that include non-adjustable internal springs and come without an externally adjustable main spring set.

Standard Features:

• HYDRO GALVI a.c. electrohydraulic Thruster (HYD) with IP65 rating and Class F insulation.
• Internal springs built into the HYDRO GALVI Thruster (IS).
• Brake shoes made of aluminum per DIN 15435 standards, fitted with steel bushings (CD).
• Asbestos-free linings with a theoretical friction coefficient of μ = 0.42 (42).
• Galvanized pins and self-lubricating bushes on main pins for durability and corrosion resistance (AU).
• Galvanized pins, tie rods, and smaller components (ZN).
• Finished with epoxy antisalt paint in grey (RAL 7001) for enhanced corrosion protection.
• Cast iron levers and base for robust construction.

Available Optional Items:

• Self-adjusting device (NV).
• Extra-wide brake shoes (1.5 times wider than DIN standard shoes) (CL).
• Stainless steel pins (SS).
• Lubricators on main pins (GR).
• Open position mechanical microswitch on the Thruster (SWMU).
• Mechanical microswitch for lining wear detection, available on the left (L) or right (R) side (FIC-L/R).
• Supporting spheres for vertical brake axis (ORZ-L/R), not available for Thruster models 024, 031, 051, and 081.
• Lowering valve for the HYDRO Thruster (LO), not available for Thruster models 024, 031, 051, and 081.
• Lifting valve for the HYDRO Thruster (LI), also not available for Thruster models 024, 031, 051, and 081.
